2022 self service bill payment kiosk with dual screen and QR
scanner
A self service kiosk is essentially a device that allows a consumer
to interact directly with a company,
receiving a service at their own convenience. The most common
example of this is purchasing tickets
for a train or bus stop. You simply approach the self-service
kiosk, pay your money and receive a ticket,
all without waiting in line or asking for assistance. Self-service
kiosks are also widely distributed to
quick-pay restaurants where the intended goal is to expedite the
process of ordering and waiting for your food.
These kiosks don’t just extend to commercial aspects, they also are
quite useful for checking in and out of hotels,
offices also employ them for checking their vendors in and airports
utilize their functions for allowing you to check-in
to your flight as a means to save time for both you and the
business itself.
If you are needing any kiosk, pls feel free to send us, we can
customize any kiosk according to your requirements.
Specifications:
| No. | Components | Detailed Description |
| 1 | Computer Part (windows) | CPU: RK3399, dual cortex-A72 + 4 Cortex -A53, 1.8Ghz processor |
| Wifi included,Mobile Network |
| Build in board 16GB, SSD:64G |
| RS-232 Ports, 6*USB Ports,1 10/100M Net Port, 4* COM Ports |
| 1*HDMI Interface, 2*LVDS Interface, 1*mics and earphone interface |
| 2 LTP; Data cable; Power cable; Network cable |
| Integrated display card, Net card, Sound card,Graphic card |
| 2 |
Monitor | 32 inch LED |
| Brightness:450cd/m2 |
| Contrast: 1200:1 |
| Max(native). Resolution:1920*1080 |
| Response time: 6ms; touch points: 10 points |
| 3 | Touch Screen | Capacitive touch screen |
| High transparence, high precision and durability |
| Resolution: 4096*4096 |
| Surface Hardness: Mohs' hardness rating of 7 Force less 100G |
| Response time: 10ms |
| 4 | Cash recycler | 80 banknotes true mixed denomination recycler-can store all
denominations from a given currency |
| Notes in SMART payout are transferable to the cash box for easy
collection |
| Maximum Stacking capacity: 1200 notes |
| Automatically center technics for notes |
| 3 sec. validating speed |
| 4 way bill insertion |
| Safe cash box with seal design |
| 5 | Enclosure | Material: 1.5mm cold-rolled steel plate |
| Ergonomically sleek and smart design |
| Easy to install and operate with drawers |
| Security locks |
| Internal fans for ventilation |
| Moistureproof, Antirust,Anti-acid, Static free |
| 6 | Camera | With 1080p high-def, H.264 video compression, and a wide 90-degree
field of view.2 Million Pixels |
| 7 | Receipt Printer | Thermal printer |
| automatic paper loading and cutting |
| Width 80mm, Printing speed:120mm/s |
| 8 | Power Supply Working Environment | 110/220 VAC ±10%, 50/60 Hz, 145 Watts |
| Temperature: indoor 32°F - 95°F (0℃~+35℃) |
| Relative humidity: 20%~95% |
| 9 | QR Scanner | Support 2D Code(GM , MICRO QR,MICRO PDF417,QR Code , Data Matrix,
Chinese-Sensible Code,etc.) |
| One-Dimensional Code(Code 128, EAN-13, EAN-8, Code39s Code93s
UPC-A, etc.) |
| Can support to scanner Mobile phone or paper's QR/barcode |
| Resolution Ratio:640x480 pixels |
| 10 | Packing | Standard Export Packing (Foam and Wooden Crate) |
| Warranty | One Year |
| Logo | We can help you to put your logo on the kiosk,free of charge. |
| Color | Optional (We will paint the color as you need) |

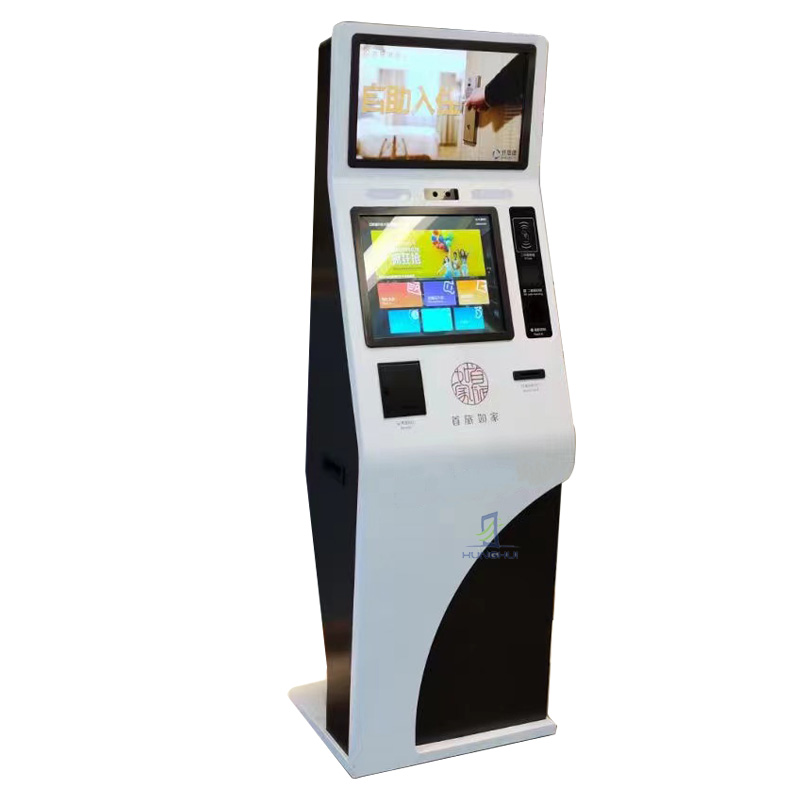

Product Actual Photos:
FAQ:
Q1: Are you manufacturer?
A1: Yes, we're OEM & ODM manufacture in shenzhen china
Q2: What's your MOQ?
A2: One sample is available.
Q3: What's the lead time?
A3: 7~35 days
Q4: What's your guarantee for bill payment kiosk?
A4: 1 year guarantee from the shipping date.
Q5: What is your payment methods ?
A5: T/T, L/C, Western Union, Credit Card, MoneyGram,etc.
Q6: What is transportation way?
A6: By sea,by air, by courier
Q7: What is your trading terms?
A7: EXW, FOB,CIF,DDU, DDP service is our common trading terms
