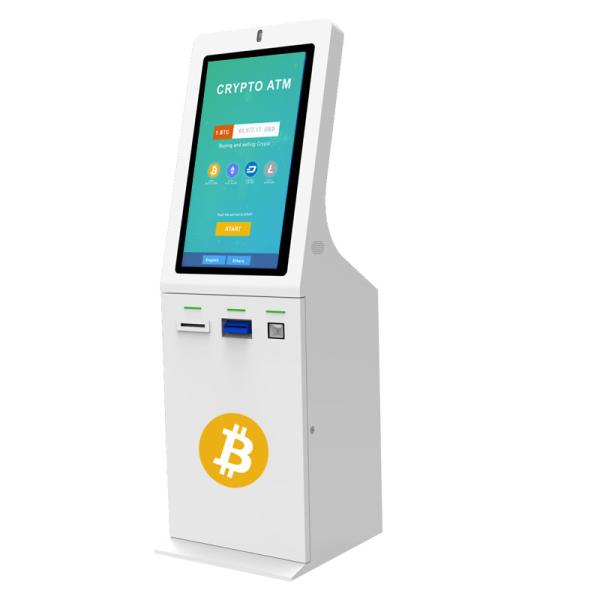

Self service touch screen cash exchange BTM buying and selling
bitcoin ATM Kiosk
Screen size support 21.5inch and 32”, It is Full HD Captive
Touchscreen, aesthetically appealing and ready to adorn any host
location. Comes with thermal printer, QR code reader, 1080p front
camera with facial recognition and cash recycler.
We have sold thousands of our bitcoin atm to USA, Canada,
Europeans, Mexico, East-Asia, Singapore, etc.. we provide software
for free but with some smaller commissions.
Specifications:
| No. | Components | Detailed Description |
| 1 | Computer Part (windows) | CPU: RK3399, dual cortex-A72 + 4 Cortex -A53, 1.8Ghz processor |
| Wifi included,Mobile Network |
| Build in board 16GB, SSD:64G |
| RS-232 Ports, 6*USB Ports,1 10/100M Net Port, 4* COM Ports |
| 1*HDMI Interface, 2*LVDS Interface, 1*mics and earphone interface |
| 2 LTP; Data cable; Power cable; Network cable |
| Integrated display card, Net card, Sound card,Graphic card |
| 2 |
Monitor | 21.5 or 32 inch LED |
| Brightness:450cd/m2 |
| Contrast: 1000:1 |
| Max(native). Resolution:1920*1080 |
| Response time: 6ms; touch points: 10 points |
| 3 | Touch Screen | Capacitive touch screen |
| High transparence, high precision and durability |
| Resolution: 4096*4096 |
| Surface Hardness: Mohs' hardness rating of 7 Force less 100G |
| Response time: 10ms |
| 4 | Cash recycler | 80 banknotes true mixed denomination recycler-can store all
denominations from a given currency |
| Notes in SMART payout are transferable to the cash box for easy
collection |
| Maximum Stacking capacity: 1200 notes |
| Automatically center technics for notes |
| 3 sec. validating speed |
| 4 way bill insertion |
| Safe cash box with seal design |
| 5 | Enclosure | Material: 2.0mm cold-rolled steel plate |
| Ergonomically sleek and smart design |
| Easy to install and operate with drawers |
| Security locks |
| Internal fans for ventilation |
| Moistureproof, Antirust,Anti-acid, Static free |
| 6 | Camera | With 1080p high-def, H.264 video compression, and a wide 90-degree
field of view.2 Million Pixels |
| 7 | Receipt Printer | Thermal printer |
| automatic paper loading and cutting |
| Width 80mm, Printing speed:120mm/s |
| 8 | Power Supply Working Environment | 110/220 VAC ±10%, 50/60 Hz, 145 Watts |
| Temperature: indoor 32°F - 95°F (0℃~+35℃) |
| Relative humidity: 20%~95% |
| 9 | QR Scanner | Support 2D Code(GM , MICRO QR,MICRO PDF417,QR Code , Data Matrix,
Chinese-Sensible Code,etc.) |
| One-Dimensional Code(Code 128, EAN-13, EAN-8, Code39s Code93s
UPC-A, etc.) |
| Can support to scanner Mobile phone or paper's QR/barcode |
| Resolution Ratio:640x480 pixels |
| 10 | Packing | Standard Export Packing (Foam and Wooden Crate) |
| Warranty | One Year |
| Logo | We can help you to put your logo on the kiosk,free of charge. |
| Color | Customized (We will paint the color as you need) |
Product Actual Photos:
RFQ:
1. About Cofigurations
Confirm what configurations you need , what function you need ,
like monitor size , touch screen , thermal printer , card reader
and so on
Using your brand , or We can recommended brand.
2. About Design
We have been manufacturing kiosk and designed hundreds types kiosk
since 2012 year, We can customize any kiosk as you need.
Using your kiosk image for OEM ----only send us kiosk picture
Using recommended kiosk image for ODM
Let’s talk about more details , supply you a better solution , Like
kiosk project bidding , Inquiry and so on
3. About Quality
With ISO Quality Management System , many professional engineers ,
15 years kiosk experiences, Control each process like 3D,CAD
drawing, Laser cutting , CNC punching , Bending, Welding , Painting
,Assembling , Testing , Packaging, Testing and Aging 24 -48 hours
to make sure good quality and product stability before delivery.
4. About warranty
12 months warranty for whole machine .
During the warranty , we can repair and replace the defective parts
for free ;After that , we will repair and charge part cost. We
suggest you can prepare some backup parts for urgent need.
